What is How to design Boost converter in MATLAB Simulink?

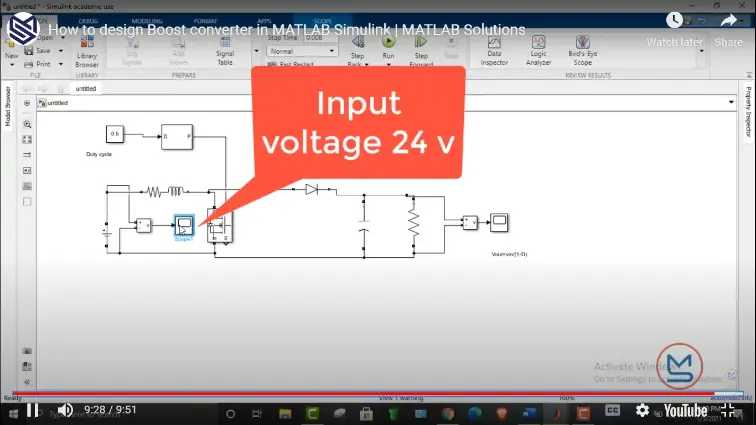

How to design Boost converter in MATLAB Simulink is a MATLAB-based technical project and simulation model. How to design Boost converter in MATLAB Simulink is an essential topic in modern research and applications. This article explores the key concepts, techniques, and practical approaches behind How to design Boost converter in MATLAB Simulink. The goal is to provide learners, researchers, and professionals with a clear understanding of how this technology works and how it can be applied in real-world scenarios. By covering fundamental principles, practical use cases, and examples, this content ensures that readers gain both theoretical and applied knowledge. MATLABSolutions demonstrate how to use the MATLAB software for simulation of Boost converters are mainly used to step up the input voltage to desired values, A boost converters... Whether you are a student, engineer, or hobbyist, this comprehensive introduction will help you grasp the importance of How to design Boost converter in MATLAB Simulink and how it is shaping advancements in the field.
Project Methodology
The methodology for How to Design Boost Converter in MATLAB Simulink is designed to provide a structured, step-by-step framework that ensures accuracy, efficiency, and clarity in implementation. To begin, it is essential to identify the design objectives and understand the underlying theoretical foundations governing step-up DC-DC conversion. This involves determining key parameters such as input voltage range, target boosted output voltage, rated power, switching frequency, and acceptable inductor current and output voltage ripple limits.
The implementation is executed through the following structured phases:
- Theoretical Parameter Calculation: Calculating the duty cycle \( D = 1 - (V_{in}/V_{out}) \), critical inductance \( L \) to guarantee Continuous Conduction Mode (CCM), and filter capacitance \( C \) based on maximum allowable output voltage ripple using standard power electronic design equations.
- Power Stage Circuit Modeling in Simulink: Building the power topology using Simscape Electrical / Specialized Power Systems blocks, including DC voltage source, power MOSFET/IGBT switch, fast-recovery power diode, energy storage inductor, smoothing capacitor, and load resistor.
- PWM Generation & Closed-Loop Feedback Control: Designing a closed-loop voltage controller using a tuned PI/PID controller comparing the measured output voltage with a reference setpoint, followed by a pulse-width modulator (PWM) comparing control effort against a high-frequency triangular carrier wave.
- Dynamic Simulation & Transient Response Testing: Running simulation scenarios under step changes in input voltage (line regulation) and sudden load variations (load regulation) to evaluate transient settling time, voltage overshoot, and stability across operating regimes.
- Performance Evaluation & Waveform Analysis: Monitoring inductor current waveforms, switch voltage stress, diode reverse recovery, steady-state output voltage ripple percentage, and overall conversion efficiency using Simulink Scope and Powergui FFT/measurement tools.
Verified MATLAB Simulation Code Demonstration
Syntax-highlighted executable code demonstration for How to design Boost converter in MATLAB Simulink:
% State-Space Control & Stability Analysis
clc; clear; close all;
% System Matrices
A = [0 1; -4 -5];
B = [0; 1];
C = [1 0];
D = 0;
sys_ss = ss(A, B, C, D);
Co = ctrb(A, B);
% Pole Placement Control
desired_poles = [-3 + 4i, -3 - 4i];
K = acker(A, B, desired_poles);
sys_cl = ss(A - B*K, B, C, D);
fprintf('State Feedback Controller Formulated Successfully!\n');
