How can we model this equation in simulink dx/dy

Basavalingappa Mudhol - 2023-11-08T13:39:50+00:00

How can we model this equation in simulink dx/dy + x + y = 1 where x is the input and y is the output?

Re-write as

 dx/dy = 1 - x - y  % y is your independent variable, sort of "t"

therefore

 dy/dx = 1/(1 - x - y)

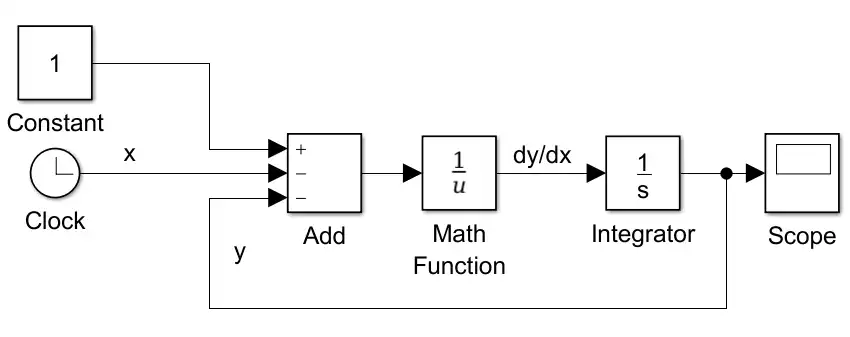

Then, from left to right (in your Simulink block diagram) you have

a summation block, adding up the right hand side, and taking the reciprocal value
the output goes into an integrator block that outputs y, which is the solution and also feeds back into the summation block
