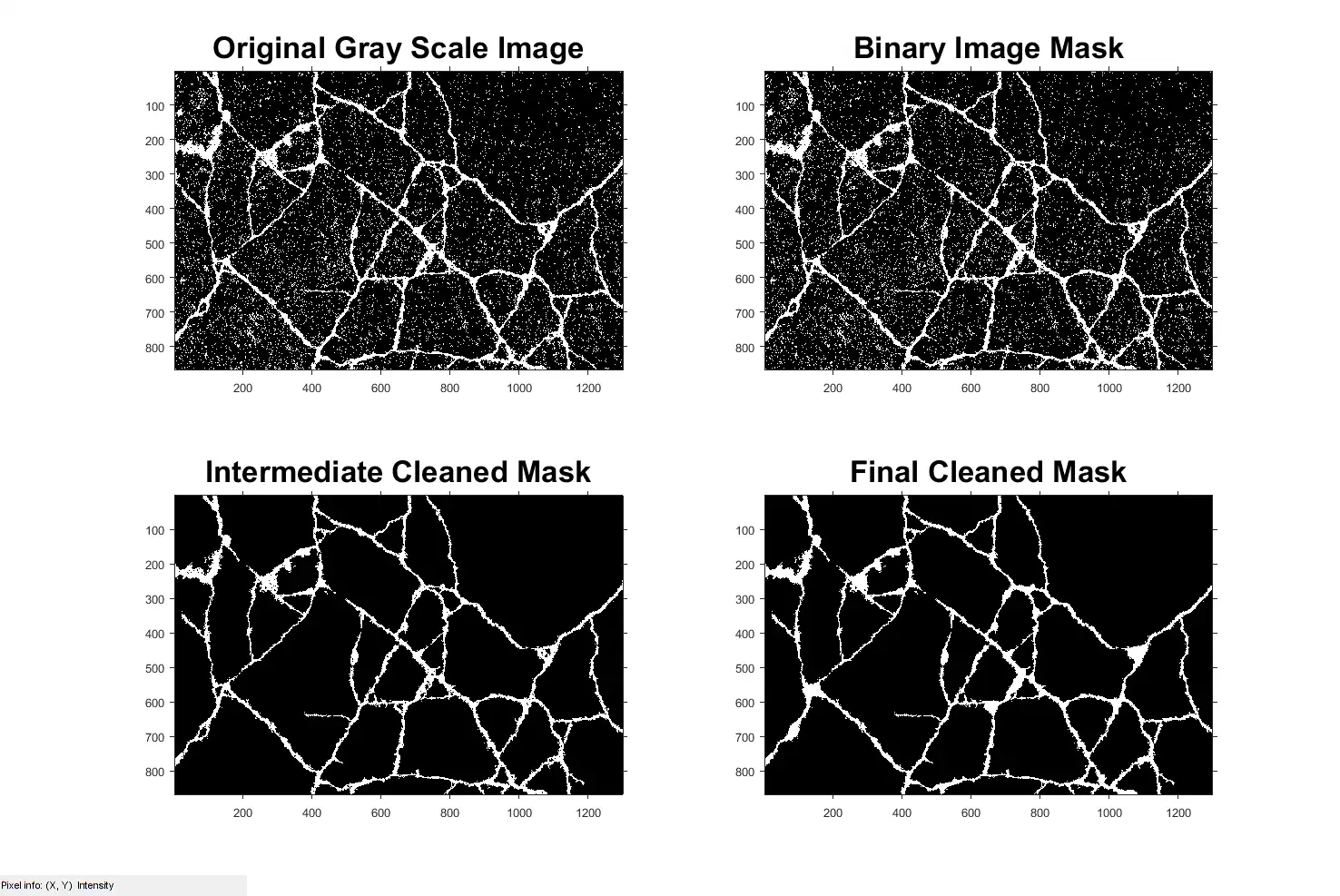

are you still there? Perhaps you're still struggling over this so I made a complete and fancy demo for you. Here it is:
clc; % Clear the command window. close all; % Close all figures (except those of imtool.) clear; % Erase all existing variables. Or clearvars if you want. workspace; % Make sure the workspace panel is showing. format long g; format compact; fontSize = 25; %=============================================================================== % Get the name of the image the user wants to use. baseFileName = 'concrete_inverted.png'; % Get the full filename, with path prepended. folder = []; % Determine where demo folder is (works with all versions). fullFileName = fullfile(folder, baseFileName); %=============================================================================== % Read in a demo image. grayImage = imread(fullFileName); % Get the dimensions of the image. % numberOfColorChannels should be = 1 for a gray scale image, and 3 for an RGB color image. [rows, columns, numberOfColorChannels] = size(grayImage) if numberOfColorChannels > 1 % It's not really gray scale like we expected - it's color. % Use weighted sum of ALL channels to create a gray scale image. grayImage = rgb2gray(grayImage); % ALTERNATE METHOD: Convert it to gray scale by taking only the green channel, % which in a typical snapshot will be the least noisy channel. % grayImage = grayImage(:, :, 2); % Take green channel. end % Display the image. subplot(2, 2, 1); imshow(grayImage, []); axis on; axis image; caption = sprintf('Original Gray Scale Image'); title(caption, 'FontSize', fontSize, 'Interpreter', 'None'); drawnow; hp = impixelinfo(); % Set up figure properties: % Enlarge figure to full screen. set(gcf, 'Units', 'Normalized', 'OuterPosition', [0 0 1 1]); % Get rid of tool bar and pulldown menus that are along top of figure. % set(gcf, 'Toolbar', 'none', 'Menu', 'none'); % Give a name to the title bar. set(gcf, 'Name', 'Demo by ImageAnalyst', 'NumberTitle', 'Off') drawnow; % Binarize the image by thresholding. mask = grayImage > 128; % For some reason, the top two lines of his image are all white. Blacken those 2 lines: mask(1:2, :) = false; % Display the mask image. subplot(2, 2, 2); imshow(mask); axis on; axis image; % Make sure image is not artificially stretched because of screen's aspect ratio. title('Binary Image Mask', 'fontSize', fontSize); drawnow; % Get rid of small blobs. mask = bwareaopen(mask, 500); % Label the image. labeledImage = bwlabel(mask); % Find the areas and perimeters props = regionprops(labeledImage, 'Area', 'Perimeter'); allAreas = [props.Area]; sortedAreas = sort(allAreas, 'descend') allPerimeters = [props.Perimeter]; % Compute circularities circularities = allPerimeters .^ 2 ./ (4 * pi * allAreas) sortedC = sort(circularities, 'descend') % Keep conly blobs that are nowhere close to circular or compact. minAllowableCircularity = 10; keeperIndexes = find(circularities >= minAllowableCircularity); mask = ismember(labeledImage, keeperIndexes); % Display the mask image. subplot(2, 2, 3); imshow(mask); axis on; axis image; % Make sure image is not artificially stretched because of screen's aspect ratio. title('Intermediate Cleaned Mask', 'FontSize', fontSize); drawnow; % Get rid of black islands (holes) in struts without filling large black areas. subplot(2, 2, 4); mask = ~bwareaopen(~mask, 1000); imshow(mask); axis on; axis image; % Make sure image is not artificially stretched because of screen's aspect ratio. title('Final Cleaned Mask', 'FontSize', fontSize); drawnow;
