Plot data in matlab
Hi, I have 3 variables which are basically in form of % and I would like to build a trent plot for these Example: 03/06/2023 - A - 5%03/06/2023 - B - 50%03/06/2023 - C - 55% I want to plot them in the same window. Basically do not want to open them in new windows each.
Prashant Kumar answered .
2025-11-20
Isn’t that just this —
Scaled = @(data,Th) [data(:) ones(size(data(:)))] * ([Th 1; 0 1] \ [1; 0]); % Scale Data By Threshold
Day{1} = [10;
30;
15];
Day{2} = [20;
40;
10];
A_Threshold = 70;
B_Threshold = 80;
C_Threshold = 85;
Thrshld = [A_Threshold; B_Threshold; C_Threshold];
for k1 = 1:numel(Day)
for k2 = 1:size(Thrshld,1)
DayScaled{k1}(k2,:) = Scaled(Day{k1}(k2,:),Thrshld(k2));
end
end
% Day1 = array2table([DayScaled{1}].', 'VariableNames',{'A','B','C'});
% Day2 = array2table([DayScaled{2}].', 'VariableNames',{'A','B','C'});
% ScaledResult = table(Day1,Day2, 'VariableNames',{'Day 1','Day 2'})
Days = datetime(['03/06/2023';'03/07/2023'], 'InputFormat','MM/dd/yyyy', 'Format','MM/dd/yyyy');
ScaledResult = array2table(cell2mat(DayScaled), 'VariableNames',string(Days), 'RowNames',{'A','B','C'})
x = ones(size([Day{1}],2),1)*(1:size([Day{1}],1));
rgb = 'grb';
cmy = 'cmy';
xtl = {'A','B','C'};
mk = {'s','d'};
cgttt = [0.9 0.5 0.3];

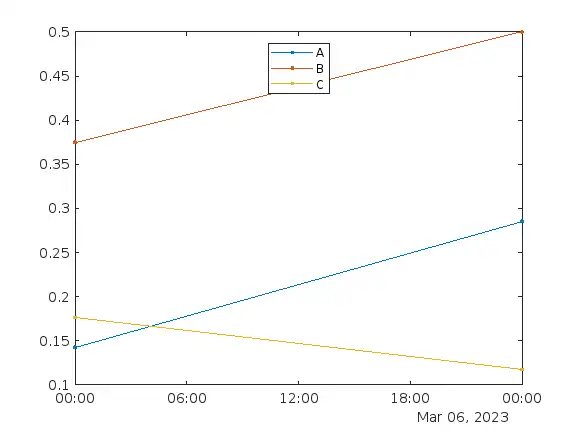

figure
plot(Days, ScaledResult{:,1:end},'.-')
legend('A','B','C', 'Location','best')
ScaledResult = 3×2 table
03/06/2023 03/07/2023
__________ __________
A 0.14286 0.28571
B 0.375 0.5
C 0.17647 0.11765
x = ones(size([Day{1}],2),1)*(1:size([Day{1}],1));
rgb = 'grb';
cmy = 'cmy';
xtl = {'A','B','C'};
mk = {'s','d'};
cgttt = [0.9 0.5 0.3];
figure
plot(Days, ScaledResult{:,1:end},'.-')
legend('A','B','C', 'Location','best')
