What is Genetic Algorithm Implementation in MATLAB?
Genetic Algorithm Implementation in MATLAB is a MATLAB-based technical project and simulation model. The Genetic Algorithm (GA) is an evolutionary computation method modeled on natural selection, genetics, and the survival of the fittest. It is widely used across engineering design, machine learning hyperparameter tuning, scheduling, and control systems to solve non-linear, discontinuous, and high-dimensional optimization problems that cause gradient-based solvers to get trapped in local optima. By operating on a population of potential solutions simultaneously, GA explores broad search spaces through biological operators including selection, crossover, and mutation. In MATLAB, genetic algorithms can be built from scratch using custom matrix operations or deployed through the Global Optimization Toolbox using the ga solver. This project covers population chromosome modeling, genetic operator design, fitness scaling, elitism preservation, and convergence analysis on standard benchmark functions.
Project Methodology
The implementation of a Genetic Algorithm in MATLAB follows a structured, step-by-step computational workflow:
- Optimization Problem Formulation: Define the mathematical objective function, number of decision variables, upper and lower boundary vectors, and any linear or non-linear inequality constraints.
- Population Chromosome Representation: Initialize an N-by-D population matrix in MATLAB containing random candidate solutions across the feasible domain, using either binary bit strings or real-valued floating-point encoding.
- Fitness Evaluation & Normalization: Evaluate each individual through the objective function, applying linear ranking or fitness scaling to manage selection pressure and prevent premature convergence.
- Selection Mechanism: Implement parent selection strategies in MATLAB:
- Tournament Selection: Randomly sampling small subgroups and selecting the fittest candidate.
- Roulette-Wheel Selection: Assigning selection probability proportional to relative fitness scores.
- Crossover (Recombination) Execution: Pair selected parents and apply crossover operators (such as single-point, uniform, or Simulated Binary Crossover) governed by a crossover rate (Pc ≈ 0.8) to generate diverse offspring.
- Mutation & Elitism Strategy: Apply bit-flip or Gaussian mutation with a low probability (Pm ≈ 0.01 to 0.05) to restore lost alleles and prevent stagnation, while applying an elitism rule to carry over the top-performing individuals unmodified to the next generation.

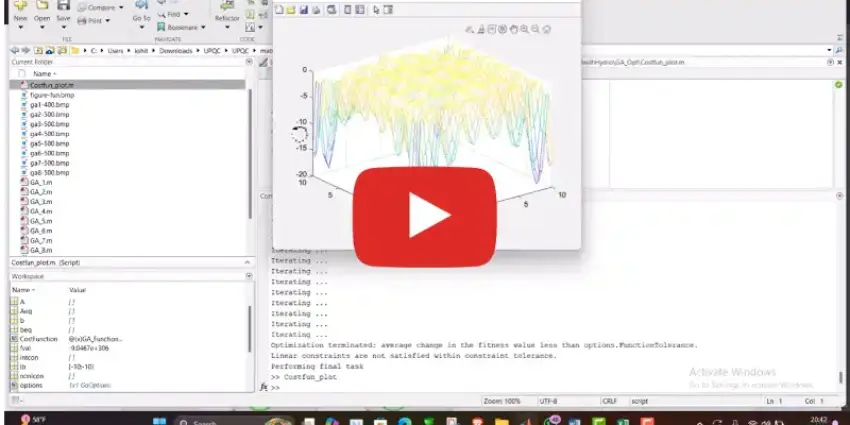

- Generational Termination & Plotting: Run the evolutionary loop until reaching the maximum generation count or fitness stall limit, generating convergence plots in MATLAB that track best fitness, mean fitness, and population diversity over time.
Verified MATLAB Simulation Code Demonstration
Syntax-highlighted executable code demonstration for Genetic Algorithm Implementation in MATLAB:
% MATLAB Constrained Numerical Optimization
clc; clear; close all;
obj_fun = @(x) (x(1)-2)^2 + (x(2)-3)^2;
x0 = [0, 0]; A = [1, 2]; b = 4; lb = [0, 0];
options = optimoptions('fmincon', 'Display', 'off', 'Algorithm', 'sqp');
[x_opt, fval] = fmincon(obj_fun, x0, A, b, [], [], lb, [], [], options);
fprintf('Optimization Solved: Minimum Value = %.4f\n', fval);
