How to get the coordinates of each room in a floor plan image through object identification method?
I have a floor plan image which contains objects and walls. I removed all the objects in it so it now contains only walls. Now I want to get the coordinates of each room. I am new to this platform. Can somebody please help me how to get the coordinates of each room? Or Can I get the end points of each line segment? This is the code. function [bbox_loc,sign_objects,index1,st,furniture]=classify_objects_test1(I1) % clear all; % clc; % close all; I_initial=imread("C:\\Users\\User\\Desktop\\tkinter_codes\\floorplans\\ROBIN\\Dataset_3roomsmall\\Cat1_1.jpg"); %I_initial = imread('room_4.png'); I=I_initial; imshow(I); SE = strel('square',10); I = imdilate(I,SE); SE = strel('square',10); I = imerode(I,SE); wall_image=I; wall = I; I=I_initial; wall=im2bw(wall); imshow(wall); I=im2bw(I); I=imcomplement(I); wall = imcomplement(wall); I=I-wall; % imshow(I); I=imcomplement(I); SE = strel('square',1); IM2 = imdilate(I,SE); IM2 = I; IM2 = imerode(IM2,SE); imwrite(IM2,'fl_0sym.tif'); se1=strel('square',8); intm1=imerode(IM2,se1); se2=strel('square',4); intm2=imdilate(intm1,se2); intm3=imdilate(intm2,se2); imwrite(intm3,'fl_0sym1.tif'); I = imread('fl_0sym1.tif'); I = imcomplement(I); J = imfill(I); J = ~J; imwrite(J,'blb_0_1.jpg'); figure=I_initial; [m,n] = size(figure); figure1 = figure(:,:,[1 1 1]); figure = im2bw(figure); [m,n] = size(figure); image = imread('blb_0_1.jpg'); BW = im2bw(image); BW = imresize(BW,[m,n]); BW = ~BW; %for 4,1,9,8 SE = strel('square',10); BW = imdilate(BW,SE); %% figure;imshow(BW); st = regionprops(BW,'BoundingBox'); shape.Inserter = vision.ShapeInserter('LineWidth',4,'BorderColor','Custom','CustomBorderColor',uint8([255 0 0])); str_ele=strel('disk',1,0); for k = 1:length(st) % k=1; % for k = 1:1 thisBB = st(k).BoundingBox; %figure1 = step(shape.Inserter,figure1,bbox_loc{k}); thisBBarea=thisBB(3)*thisBB(4); if thisBB(3)>20 && thisBB(4)>20 rectangle = int32([thisBB(1),thisBB(2),thisBB(3),thisBB(4)]); end if(thisBBarea >870) bbox_loc{k}=rectangle; crop_I_new=imcrop(figure1,rectangle); crop_I_new_gray=rgb2gray(crop_I_new); crop_I=im2bw(crop_I_new_gray,0.7); % figure;imshow(crop_I); signature{k}=signature_find(crop_I); if isempty(signature{k}) signature{k}=[99999,99999,99999]; end figure1 = step(shape.Inserter,figure1,bbox_loc{k}); end end signature=signature(~cellfun('isempty',signature)); save('signature.mat','signature'); signature=load('signature.mat'); sign_objects=load('sign_object2'); for i=1:length(signature.signature) for j=1:length(sign_objects.sign_object2) diff{i,j}=abs(signature.signature{1,i}-sign_objects.sign_object2{j,1}.count); end end for(i=1:size(diff,1)) for(j=1:size(diff,2)) if(sign_objects.sign_object2{j,1}.count(3)>1000) temp1(i,j)=diff{i,j}(1)+diff{i,j}(2); else temp1(i,j)=diff{i,j}(1)+diff{i,j}(2)+diff{i,j}(3); end end end for(i=1:size(temp1,1)) [temp1_min(i),index1(i)]=min(temp1(i,:)); disp(sign_objects.sign_object2{index1(i),2}); furniture{i,1}=sign_objects.sign_object2{index1(i),2} figure;imshow(figure1); bbox_loc=bbox_loc(~cellfun('isempty',bbox_loc)); end for k = 1:length(bbox_loc) H= text( double(bbox_loc{k}(1)),double(bbox_loc{k}(2)),sign_objects.sign_object2{index1(k),2}); set(gcf,'DefaultTextColor','blue') end % for i=1:size(diff,1) % for j=1:size(diff,2) % % temp1(i,j)=(diff{i,j}(1)); % temp2(i,j)=(diff{i,j}(2)); % temp3(i,j)=(diff{i,j}(3)); % % % end % [temp1_min(i),index1(i)]=min(temp1(i,:)); % disp(sign_objects.sign_object1{index1(i),2}); % furniture{i,1}=sign_objects.sign_object1{index1(i),2} % end I am attaching a zip file which contains files which will be used by this code while running. This is the floorplan image with objects. This is the image with only walls.
Prashant Kumar answered .
2025-11-20
One approach is to close all of the doors morphologically:
load('Walls')
e=ones(1,105);
A=imclose(imclose(~Image,e),e.');
B=imfill(A,'holes')&~A;

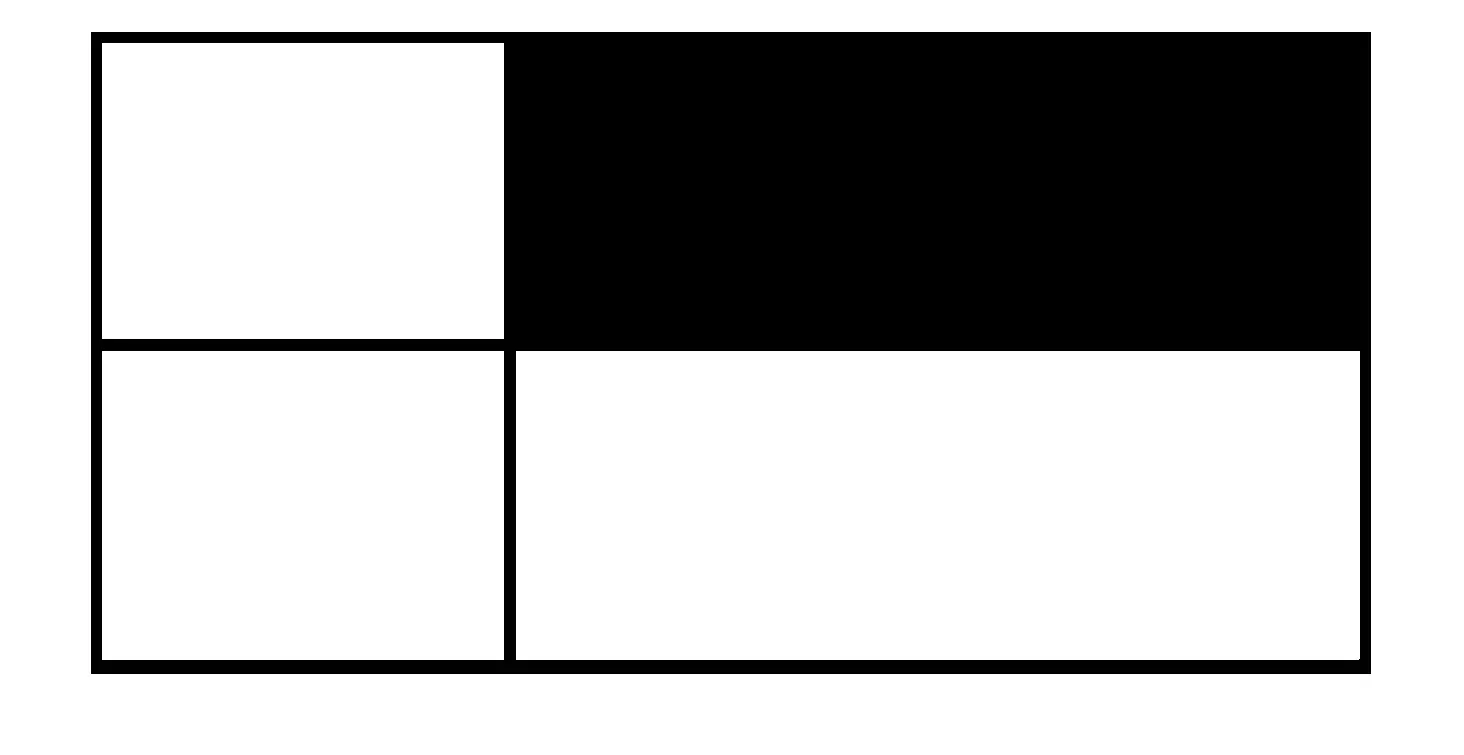

imshow(B)
Now, you can simply use regionprops to get all of the pixel coordinates in each room,
>> Rooms=regionprops(B,'PixelList')
Rooms =
3×1 struct array with fields:
PixelList
