Implementation of Directional Over-current Relay in MATLAB

Implementation of Directional Over-current Relay

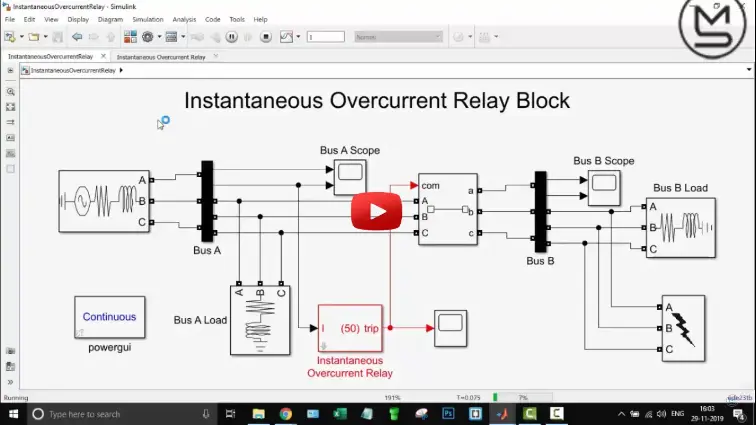

MATLABSolutions demonstrate how to use the MATLAB software for simulation of a over current relay. As the smart grid concept is employed in the electric power system, network load flow and topology changes intensively to meet the best generation-demand balancing point. These changes must account for protection devices to enhance their performance. The coordination of directional over-current relays is most commonly studied based on fixed network operation and topology within a mesh power system. But sub-transmission and distribution systems constantly operate differently to satisfy the variety of load demand levels throughout the day and year. Hence, if the setting of directional over-current relays changes according to the different operations of the system, then relay operation time and sensitivity can both be enhanced.

This can potentially improve the protection performance in a smart grid system. Therefore, this study is carried out based on the comparison among three coordination approaches: conventional (fixed settings), discrete (groups of settings), and continuous or real time (dynamic settings).
