sunil_shah asked . 2023-11-21

Why is my PEAK-System CAN device not detected in Vehicle Network Toolbox?

Why isn't my PEAK-System device detected by the "canChannelList" or "canHWInfo" functions in MATLAB, or using the CAN Configuration / CAN Receive / CAN Transmit blocks in Simulink?

peak-system , can , device , Vehicle Network Toolbox

Expert Answer

Kshitij Singh answered . 2024-05-17 21:21:55

To have the PEAK-System CAN device detected in MATLAB or Simulink you need to install the vendor device drivers and PCAN-Basic API DLL as described below.

The PEAK-System device would not be detected if:
  • The vendor PEAK-System CAN device drivers are not installed or are not configured properly during installation, or
  • The vendor drivers installed the 32-bit version of PCAN-Basic API DLL instead of the 64-bit version.
Follow these steps to manually install the vendor drivers:

1. Navigate to "C:\Windows\System32" and look for "pcanbasic.dll" ( if there is no pcanbasic.dll, continue to step 2 ). Right-click on the DLL, and click on "Properties". On the Details tab, if the "File description" indicates that this is a 32-bit DLL, then delete this DLL.

2. Uninstall any existing PEAK-Drivers from Windows Control Panel > Programs and Features

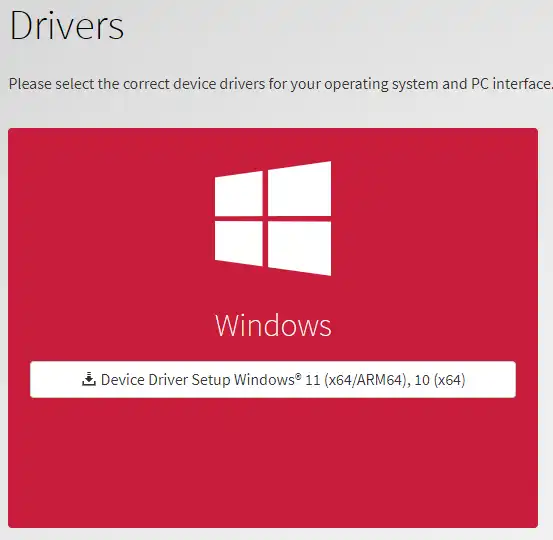

3. Go to the manufacturer's website, Downloads section to download the driver package:

Click on "Device Driver Setup Windows" to download.
4. Extract the downloaded zip file.

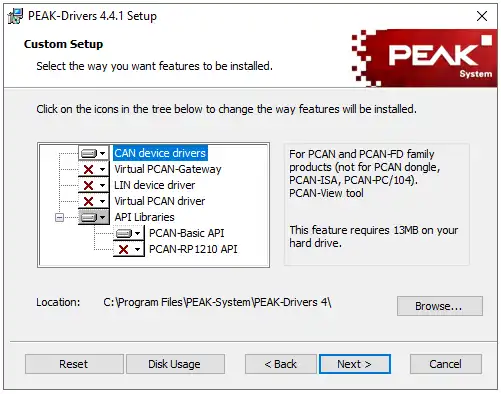

5. Execute PeakOemDrv.exe, and during setup make sure the following options are checked/enabled:
- CAN device drivers
- PCAN-Basic


5. Reboot computer.

6. Connect the PEAK-System device.

7. Open vendor utility PCAN-View and confirm that the device is detected, then close PCAN-View.

8. Restart MATLAB and execute canChannelList to confirm that the device is detected.


Once the vendor drivers are installed, to use the PEAK-System CAN device with MATLAB or Simulink, note that:
  • You need to close the vendor app PCAN-View before MATLAB is started.
  • To have the PEAK-System CAN device detected in Simulink, the device needs to be plugged in before MATLAB is started.
