What is Tank Level Control Simulation in MATLAB Simulink | PID Controller Tutorial?

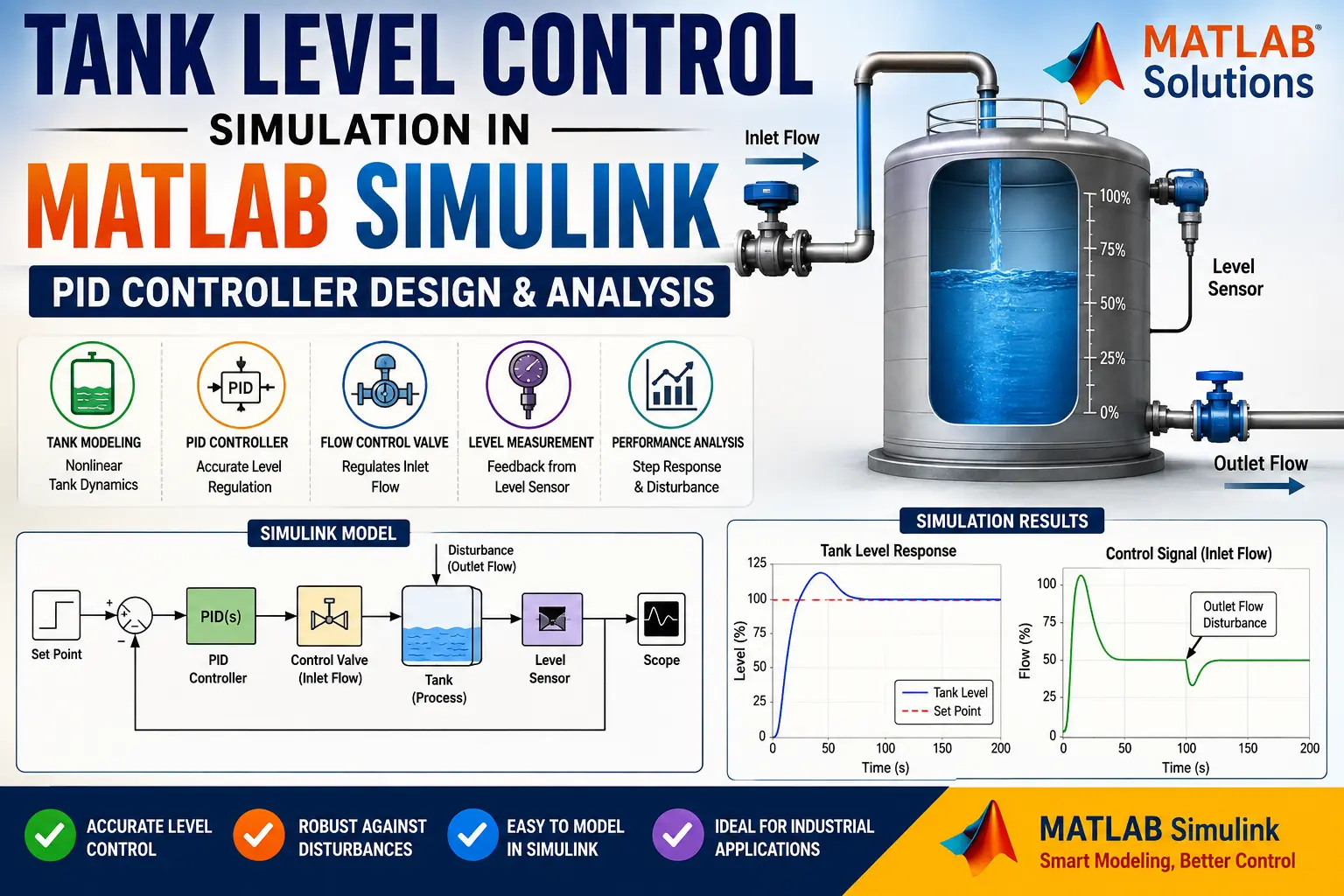

Tank Level Control Simulation in MATLAB Simulink | PID Controller Tutorial is a MATLAB-based technical project and simulation model. Tank Level Control is one of the most widely used process control applications in industries such as water treatment, chemical processing, food manufacturing, pharmaceuticals, and oil & gas. Maintaining the desired liquid level in a storage tank is essential for ensuring process stability, preventing overflow, and improving operational efficiency. This tutorial demonstrates how to design and simulate a Tank Level Control System in MATLAB Simulink using a PID controller. The model includes a water tank, inlet flow control valve, outlet disturbance, level sensor, feedback controller, and scope for monitoring system performance. The PID controller continuously adjusts the inlet flow to maintain the desired water level despite variations in demand or disturbances.
Project Methodology
The Tank Level Control model is developed using MATLAB Simulink through the following steps:
- Tank Modeling
- Create a mathematical model of the water tank.
- Define tank area, inlet flow, outlet flow, and liquid level dynamics.
- Reference Level
- Set the desired tank level using a reference input.
- Level Sensor
- Measure the actual liquid level.
- Feed the measured level back to the controller.
- PID Controller Design
- Implement a PID controller.
- Tune proportional (P), integral (I), and derivative (D) gains for optimal performance.
- Flow Control Valve
- Regulate the inlet water flow based on the controller output.
- Disturbance Analysis
- Introduce changes in outlet flow.
- Evaluate the controller's ability to maintain the desired level.
- Performance Evaluation
- Analyze:
- Tank level response
- Control signal
- Overshoot
- Settling time
- Steady-state error
- Rise time
- Analyze:
- Simulation Results
- Compare system performance before and after PID tuning.
- Validate controller effectiveness under varying operating conditions.
Verified MATLAB Simulation Code Demonstration
Syntax-highlighted executable code demonstration for Tank Level Control Simulation in MATLAB Simulink | PID Controller Tutorial:
% State-Space Control & Stability Analysis
clc; clear; close all;
% System Matrices
A = [0 1; -4 -5];
B = [0; 1];
C = [1 0];
D = 0;
sys_ss = ss(A, B, C, D);
Co = ctrb(A, B);
% Pole Placement Control
desired_poles = [-3 + 4i, -3 - 4i];
K = acker(A, B, desired_poles);
sys_cl = ss(A - B*K, B, C, D);
fprintf('State Feedback Controller Formulated Successfully!\n');
